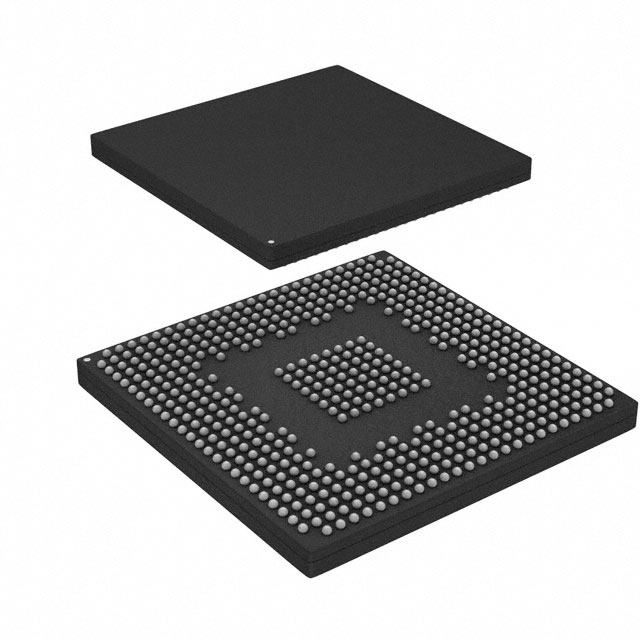

SPC5777CCK3MMO3
IC MCU 32BIT 8MB FLASH 516MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx series SPC5777CCK3MMO3 is a 32-bit Tri-Core microcontroller featuring the e200z7 core architecture. This device operates at a maximum frequency of 264MHz and offers 8MB of FLASH program memory with an 8M x 8 configuration. It includes 512KB of RAM. Connectivity options are extensive, supporting CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, and SPI protocols. Analog capabilities include 16-bit Sigma-Delta and eQADC data converters. Integrated peripherals include DMA, LVD, POR, and Zipwire. The SPC5777CCK3MMO3 is supplied in a 516-MAPBGA (27x27) surface mount package and operates within a voltage range of 3V to 5.5V. This component is suitable for demanding applications in the automotive and industrial sectors.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BGA |
| Mounting Type | Surface Mount |
| Speed | 264MHz |
| Program Memory Size | 8MB (8M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 16b Sigma-Delta, eQADC |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI |
| Peripherals | DMA, LVD, POR, Zipwire |
| Supplier Device Package | 516-MAPBGA (27x27) |
| Programmable | Not Verified |
