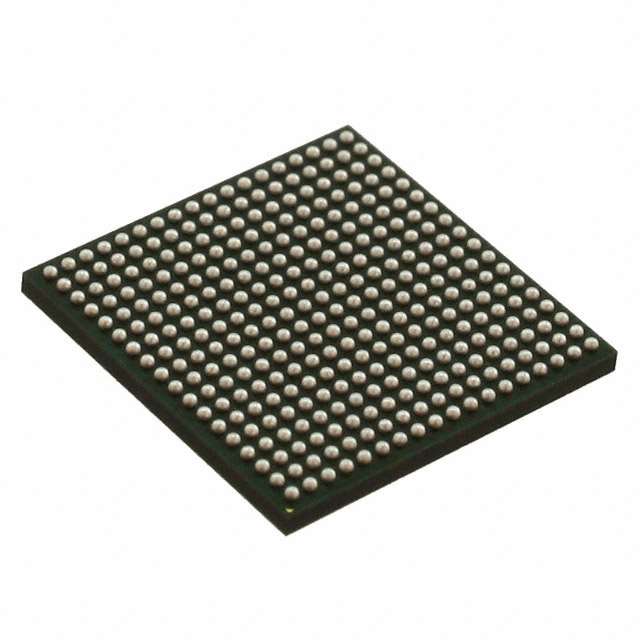

SPC5748GK1MMN6
IC MCU 32BIT 6MB FLASH 324MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5748GK1MMN6 is a 32-Bit Tri-Core microcontroller from the MPC57xx series. This automotive-grade device features a flexible core configuration with e200z2 and e200z4 processors operating at up to 160MHz. It offers 6MB of FLASH program memory and 768KB of RAM, supporting a wide range of peripherals including DMA, LVD, POR, and WDT. Connectivity options include CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. The device integrates 80x10-bit and 64x12-bit Analog-to-Digital converters. Packaged in a 324-MAPBGA (19x19) surface mount configuration, it operates within an ambient temperature range of -40°C to 125°C. This component is utilized in demanding applications within the automotive and industrial sectors.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 324-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 6MB (6M x 8) |
| RAM Size | 768K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 324-MAPBGA (19x19) |
| Number of I/O | 246 |
| Programmable | Not Verified |
