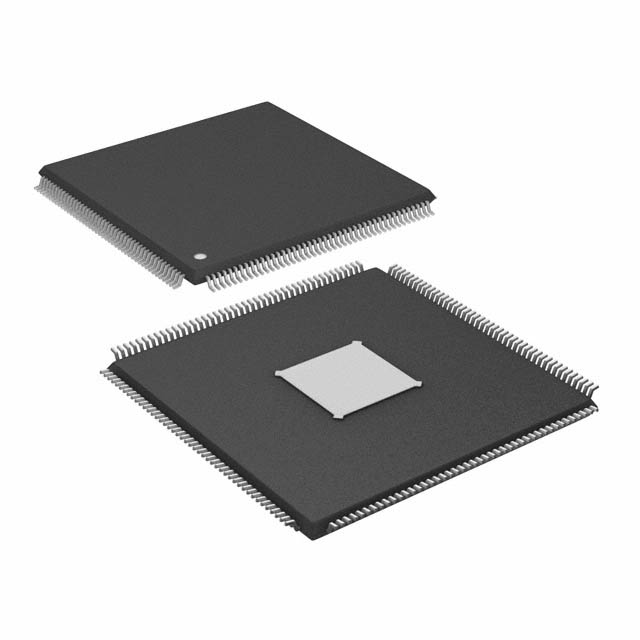

SPC5747GK1MKU6R
IC MCU 32BIT 4MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. SPC5747GK1MKU6R is a 32-bit automotive microcontroller from the MPC57xx series. This tri-core device features two e200z4 cores and one e200z2 core, operating at speeds up to 160MHz. It includes 4MB of FLASH program memory and 768KB of RAM. Connectivity options are extensive, supporting CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB (including OTG). Data conversion capabilities are provided by 80x10-bit and 64x12-bit Analog-to-Digital converters. The microcontroller is housed in a 176-LQFP (24x24) package for surface mounting and operates within a temperature range of -40°C to 125°C, with a supply voltage range of 3V to 5.5V. Peripherals include DMA, LVD, POR, and WDT. This component is commonly utilized in automotive applications.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 768K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 129 |
| Programmable | Not Verified |
