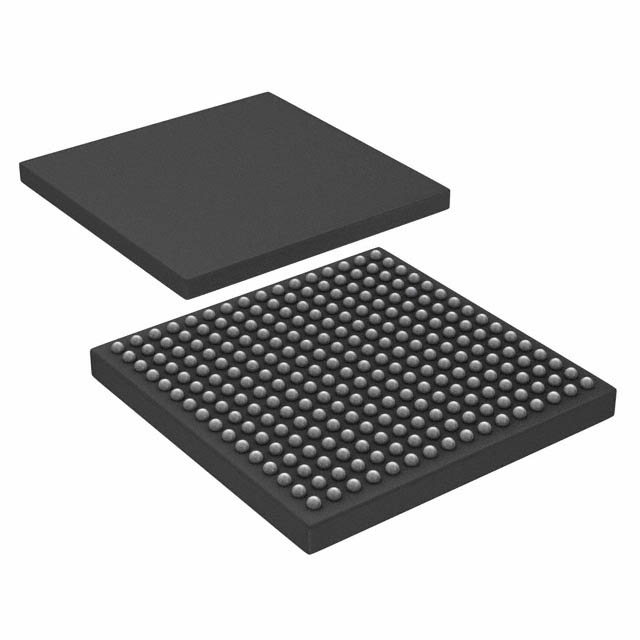

SPC5747CSK0AVMJ2
IC MCU 32BIT 4MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5747CSK0AVMJ2 is a 32-bit dual-core microcontroller from the MPC57xx series, featuring e200z2 and e200z4 cores operating at 80MHz and 120MHz respectively. This device offers 4MB of FLASH program memory (4M x 8) and 512KB of RAM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SAI, and SPI. The SPC5747CSK0AVMJ2 incorporates analog-to-digital converters with 48x10-bit and 16x12-bit resolution. Peripherals include DMA, LVD, POR, and WDT. The component is housed in a 256-MAPPBGA (17x17) package, suitable for surface mount applications. It operates within a voltage range of 3V to 5.5V and an ambient temperature range of -40°C to 105°C. This microcontroller is commonly utilized in the automotive and industrial automation sectors.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz, 120MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 48x10b, 16x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
