SPC5747CK1VMJ6R

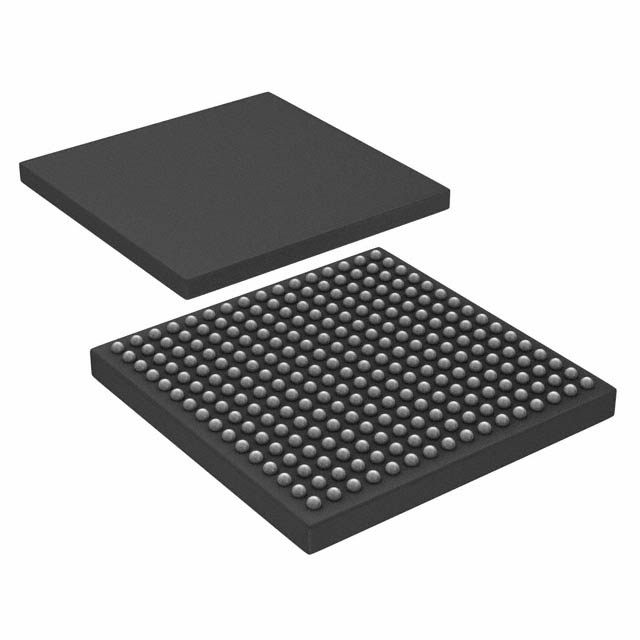

IC MCU 32BIT 4MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MPC57xx series microcontroller, part number SPC5747CK1VMJ6R, is a 32-bit dual-core processor featuring e200z2 and e200z4 cores operating at 80MHz and 160MHz respectively. This component offers 4MB of FLASH program memory and 512KB of RAM, with 178 I/O lines. Integrated peripherals include DMA controllers, LVD, POR, and WDT. Connectivity options are extensive, supporting CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG functionality. It includes data conversion capabilities with 80x10-bit and 64x12-bit ADCs. Packaged in a 256-MAPPBGA (17x17) for surface mounting, this device operates within a temperature range of -40°C to 105°C and a supply voltage of 3V to 5.5V. This microcontroller is suitable for automotive and industrial applications.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
