SPC5747CK1CMJ2

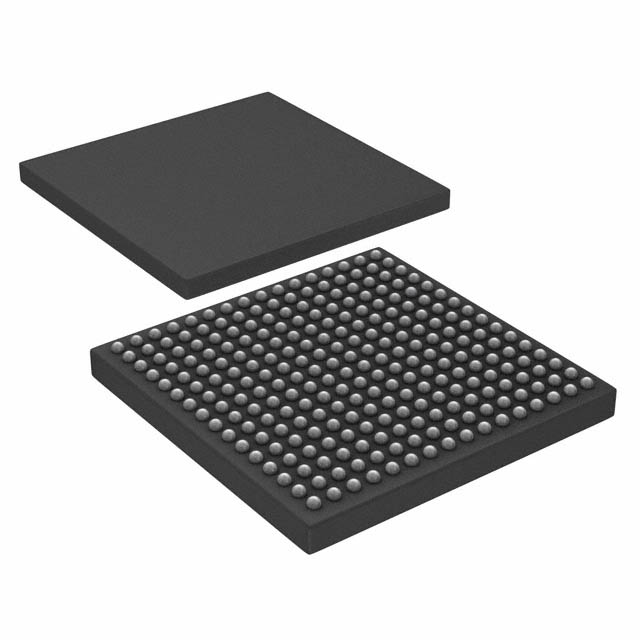

IC MCU 32BIT 4MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. SPC5747CK1CMJ2 is a 32-bit dual-core microcontroller from the MPC57xx series. Featuring e200z2 and e200z4 cores operating at 80MHz and 120MHz respectively, this device offers 4MB of FLASH program memory and 512KB of RAM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. On-chip peripherals encompass DMA, LVD, POR, and WDT. The component includes 80x10-bit and 64x12-bit Analog-to-Digital converters. Supplied in a 256-MAPPBGA (17x17) package for surface mounting, it operates within a voltage range of 3V to 5.5V and an ambient temperature range of -40°C to 85°C. This microcontroller is suitable for automotive and industrial applications.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
