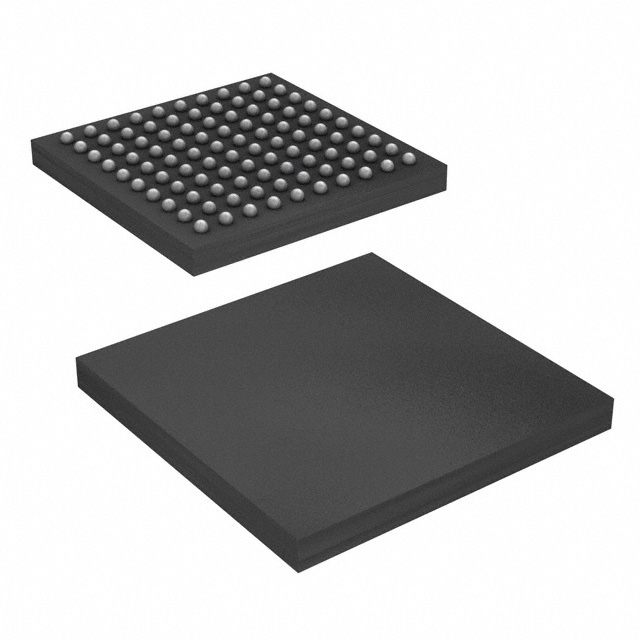

SPC5746CSK1AMMH6
IC MCU 32BIT 3MB FLASH 100MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx Series SPC5746CSK1AMMH6 is a 32-bit dual-core microcontroller featuring e200z2 and e200z4 cores. This device offers 3MB of FLASH program memory and 512KB of RAM. It operates at speeds of 80MHz and 160MHz, with a supply voltage range of 3V to 5.5V. The SPC5746CSK1AMMH6 supports a wide array of connectivity options including CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB (including OTG). On-chip data conversion capabilities include 80 channels of 10-bit ADCs and 64 channels of 12-bit ADCs. Peripherals such as DMA, LVD, POR, and WDT are integrated for enhanced system control. This surface-mount component is supplied in a 100-MAPBGA (11x11) package. Applications for this microcontroller are found in automotive and industrial sectors.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 100-MAPBGA (11x11) |
| Programmable | Not Verified |
