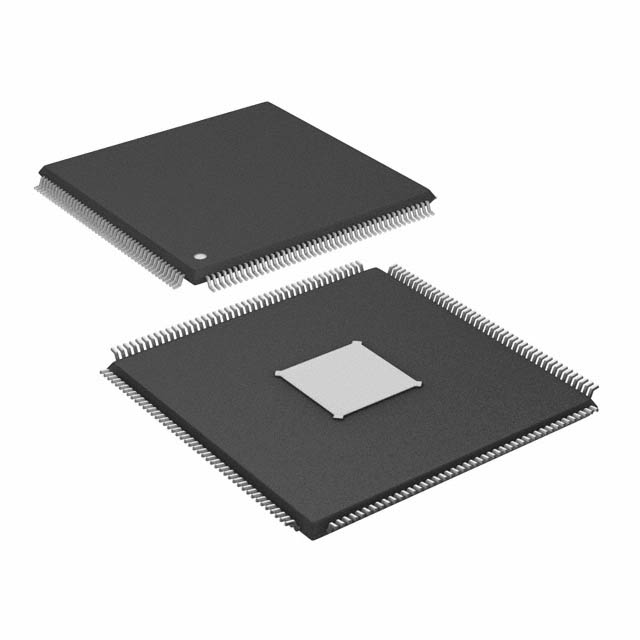

SPC5746CK1MKU6
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. SPC5746CK1MKU6 is a 32-bit dual-core microcontroller from the MPC57xx series. This automotive-grade component features two e200z2 and e200z4 cores operating at 80MHz and 160MHz respectively. It offers 3MB of FLASH program memory and 512KB of RAM. The device includes extensive connectivity options such as CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. Data conversion capabilities include 80 channels of 10-bit ADC and 64 channels of 12-bit ADC. Integrated peripherals include DMA, LVD, POR, and WDT. The SPC5746CK1MKU6 is supplied in a 176-LQFP (24x24) package with an exposed pad, designed for surface mounting. It operates within a voltage range of 3V to 5.5V and is rated for an operating temperature of -40°C to 125°C. This microcontroller is commonly utilized in automotive applications, including body control modules, powertrain systems, and advanced driver-assistance systems.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 129 |
| Programmable | Not Verified |
