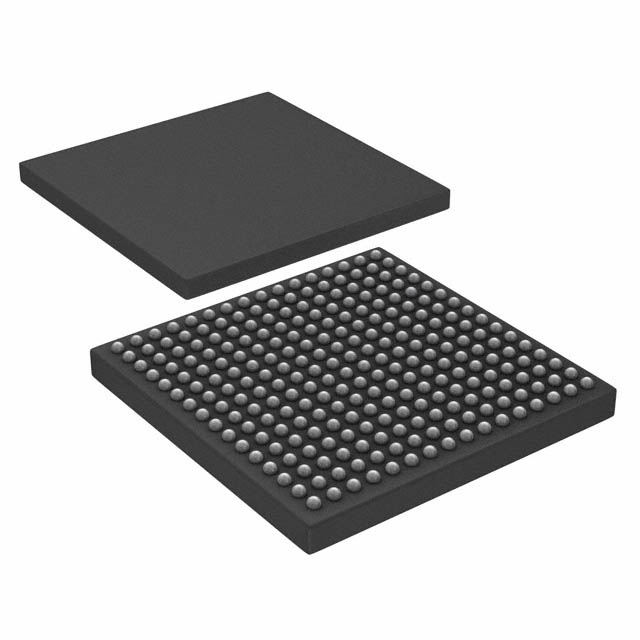

SPC5746CHK1ACMJ6
IC MCU 32BIT 3MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx SPC5746CHK1ACMJ6 is a 32-bit dual-core microcontroller featuring e200z2 and e200z4 cores operating at 80MHz/160MHz. This component provides 3MB of FLASH program memory and 512KB of RAM. It integrates comprehensive connectivity options including CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. Data conversion capabilities are provided by 80x10-bit and 64x12-bit Analog-to-Digital converters. Peripherals include DMA, LVD, POR, and WDT. The device is housed in a 256-MAPPBGA (17x17) package and supports a supply voltage range of 3V to 5.5V. This microcontroller is suitable for demanding applications in the automotive and industrial sectors.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
