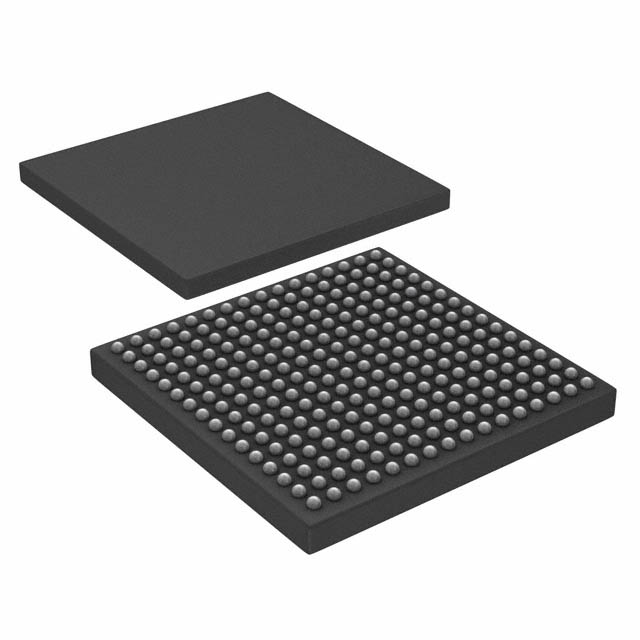

SPC5746CHK0AMMJ6
IC MCU 32BIT 3MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5746CHK0AMMJ6 is a 32-bit dual-core microcontroller from the MPC57xx series. This device features two e200z2 and e200z4 processor cores, operating at 80MHz and 160MHz respectively. It offers 3MB of FLASH program memory and 512KB of RAM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. The SPC5746CHK0AMMJ6 is packaged in a 256-MAPPBGA (17x17) and supports surface mount installation. Integrated peripherals include DMA, LVD, POR, and WDT. Data conversion capabilities are provided by 80x10-bit and 64x12-bit ADCs. This component operates within a temperature range of -40°C to 125°C and utilizes an internal oscillator. The supply voltage range is 3V to 5.5V. It is commonly utilized in automotive and industrial applications.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
