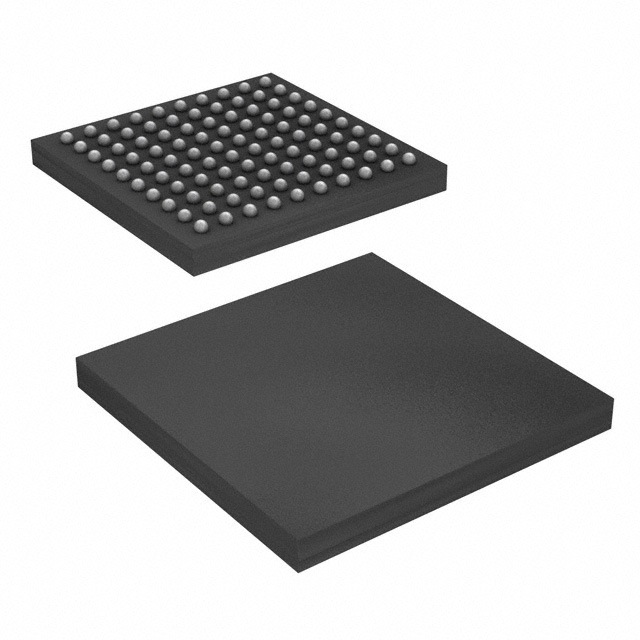

SPC5746CFK1ACMH6
IC MCU 32BIT 3MB FLASH 100MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx SPC5746CFK1ACMH6 microcontroller, featuring a 32-bit dual-core e200z2 and e200z4 processor architecture, operates at speeds of 80MHz and 200MHz. This device offers 3MB of FLASH program memory and 384KB of RAM, along with 128KB of EEPROM. Integrated peripherals include DMA, LVD, POR, and WDT. Connectivity options encompass CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. Data conversion capabilities are provided by 36x10-bit and 16x12-bit ADCs. The SPC5746CFK1ACMH6 is supplied in a 100-MAPBGA (11x11) surface mount package, operating within a temperature range of -40°C to 85°C. It is commonly utilized in automotive and industrial applications requiring robust control and communication capabilities.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz, 200MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 36x10b, 16x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 100-MAPBGA (11x11) |
| Number of I/O | 65 |
| Programmable | Not Verified |
