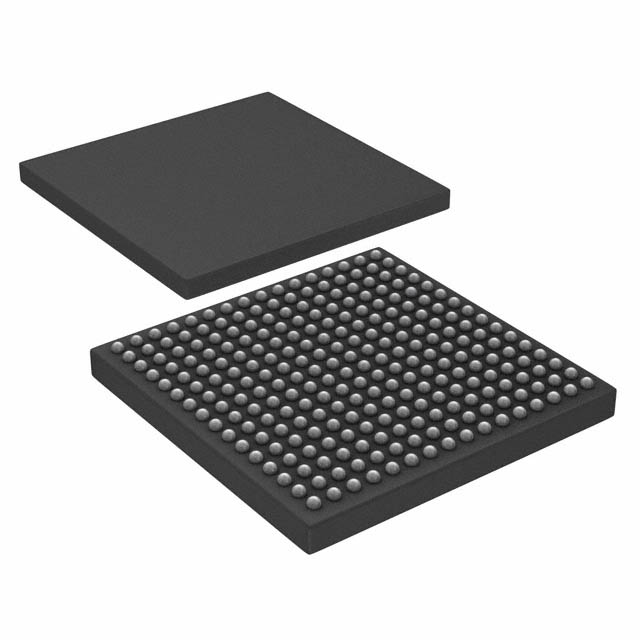

SPC5746CBK1AMMJ6
IC MCU 32BIT 3MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx SPC5746CBK1AMMJ6 is a 32-bit dual-core microcontroller featuring e200z2 and e200z4 cores operating at 80MHz and 160MHz respectively. This device offers 3MB of FLASH program memory and 512KB of RAM. It provides extensive connectivity options including CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. Analog-to-digital conversion is handled by 80x10-bit and 64x12-bit data converters. Integrated peripherals include DMA, LVD, POR, and WDT. The SPC5746CBK1AMMJ6 is supplied in a 256-MAPPBGA (17x17) package, suitable for surface mount applications, and operates within a temperature range of -40°C to 125°C. This microcontroller is commonly utilized in automotive and industrial applications demanding high performance and robust communication capabilities.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
