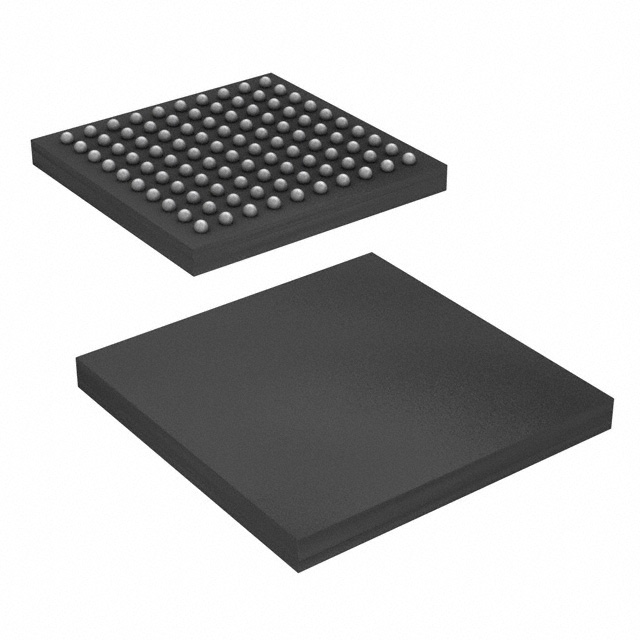

SPC5746BTK1AVMH6
IC MCU 32BIT 3MB FLASH 100MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5746BTK1AVMH6 is a 32-bit single-core microcontroller from the MPC57xx series, featuring an e200z4 core operating at 160MHz. This component offers 3MB of FLASH program memory and 384KB of RAM. It includes a 64KB EEPROM for data storage. Connectivity options are extensive, supporting CANbus, Ethernet, FlexRay, I2C, LINbus, and SPI protocols. The device integrates multiple data converters, including 36 channels of 10-bit ADCs and 16 channels of 12-bit ADCs. Peripherals include DMA, I2S, POR, and WDT. The SPC5746BTK1AVMH6 is housed in a 100-MAPBGA (11x11) surface mount package and operates within a temperature range of -40°C to 105°C (TA). Its voltage supply range is 3.15V to 5.5V. This microcontroller is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4 |
| Data Converters | A/D 36x10b, 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, I2S, POR, WDT |
| Supplier Device Package | 100-MAPBGA (11x11) |
| Programmable | Not Verified |
