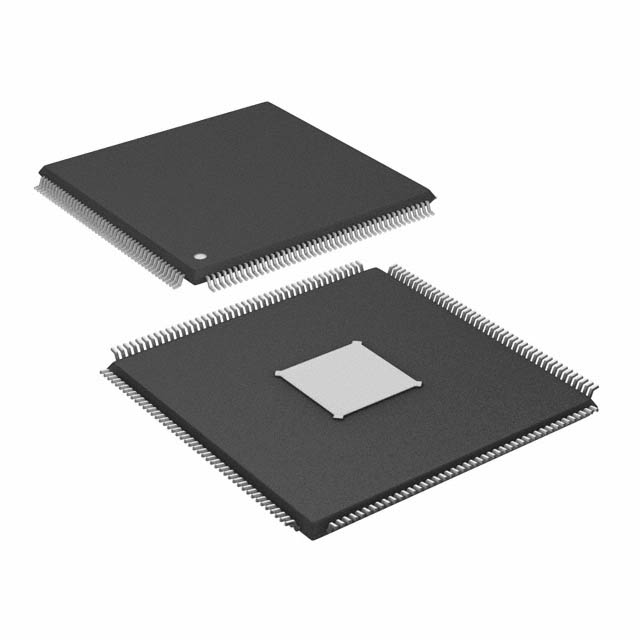

SPC5746BSK1AMKU2
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5746BSK1AMKU2 is a 32-bit single-core microcontroller based on the e200z4 core. This device operates at a maximum frequency of 120MHz and features 3MB of FLASH program memory, alongside 384KB of RAM. It includes a 64KB EEPROM for non-volatile data storage. Connectivity options are extensive, supporting CANbus, Ethernet, FlexRay, I2C, LINbus, and SPI protocols. The SPC5746BSK1AMKU2 offers 129 I/O lines and includes peripherals such as DMA, I2S, POR, and WDT. Data conversion capabilities include 36 channels of 10-bit A/D and 16 channels of 12-bit A/D converters. Packaged in a 176-LQFP (24x24) with an exposed pad, this surface-mount component operates within a temperature range of -40°C to 125°C. The MPC57xx series microcontroller is commonly utilized in automotive applications, including powertrain control and body electronics.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4 |
| Data Converters | A/D 36x10b, 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, I2S, POR, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 129 |
| Programmable | Not Verified |
