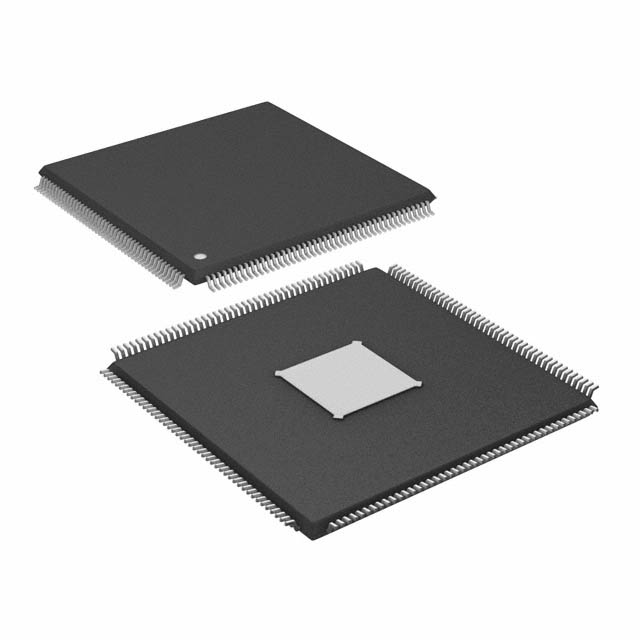

SPC5746BK1MKU2R
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx SPC5746BK1MKU2R is a 32-bit single-core microcontroller featuring the e200z4 core, operating at 120MHz. This device integrates 3MB of FLASH program memory and 384KB of RAM, with an additional 64KB of EEPROM. The SPC5746BK1MKU2R supports a wide range of connectivity options including CANbus, Ethernet, FlexRay, I2C, LINbus, and SPI. It is equipped with analog-to-digital converters, offering 36 channels of 10-bit resolution and 16 channels of 12-bit resolution. Peripherals include DMA, I2S, POR, and WDT. The microcontroller is housed in a 176-LQFP (24x24) exposed pad package, suitable for surface mounting, and operates within an industrial temperature range of -40°C to 125°C. This component is commonly utilized in automotive, industrial automation, and advanced driver-assistance systems (ADAS) applications. Supplied on Tape & Reel (TR).
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4 |
| Data Converters | A/D 36x10b, 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, I2S, POR, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 129 |
| Programmable | Not Verified |
