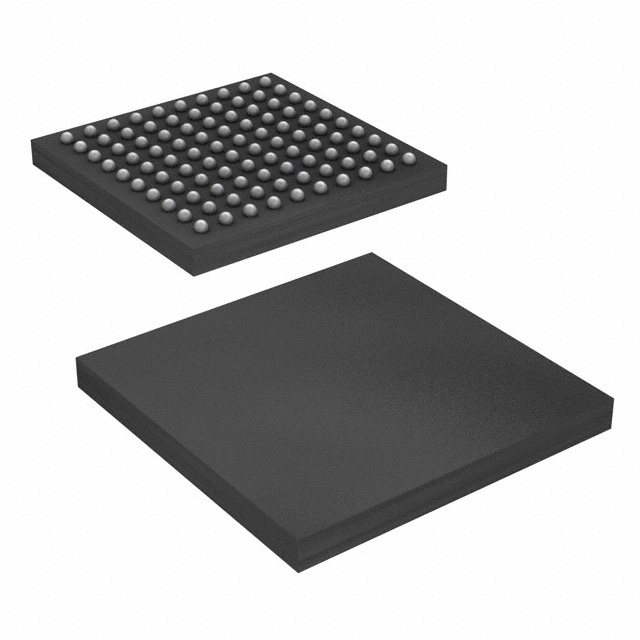

SPC5746BHK1AMMH6
IC MCU 32BIT 3MB FLASH 100MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx SPC5746BHK1AMMH6 is a 32-bit single-core microcontroller featuring the e200z4 core operating at 160MHz. This device offers 3MB of FLASH program memory and 384KB of RAM. Integrated peripherals include DMA, LVD, POR, and WDT. Connectivity options are extensive, supporting CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB (including OTG). The SPC5746BHK1AMMH6 incorporates 36 channels of 10-bit Analog-to-Digital conversion and 16 channels of 12-bit ADC. It also includes 64K x 8 of EEPROM. Supplied in a 100-MAPBGA (11x11) package, this surface-mount component operates across an industrial temperature range of -40°C to 125°C and requires a supply voltage between 3.15V and 5.5V. This microcontroller is suitable for automotive and industrial control applications.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4 |
| Data Converters | A/D 36x10b, 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 100-MAPBGA (11x11) |
| Number of I/O | 65 |
| Programmable | Not Verified |
