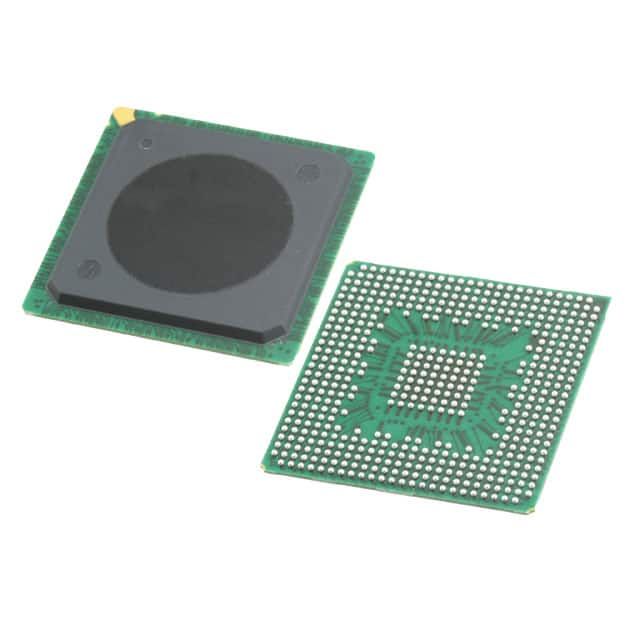

SPC5676RDK3MVY1
IC MCU 32BIT 6MB FLASH 516FPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP's SPC5676RDK3MVY1 is a 32-bit dual-core e200z7 MPC56xx Qorivva microcontroller. This device features a robust 6MB of FLASH program memory and 384KB of RAM, operating at a speed of 180MHz. Connectivity options include CANbus, EBI/EMI, SCI, and SPI. The SPC5676RDK3MVY1 incorporates a 64-channel 12-bit Analog-to-Digital converter and essential peripherals such as DMA, POR, and PWM. Designed for demanding applications, it is housed in a 516-PBGA (27x27) surface-mount package and operates within a temperature range of -40°C to 125°C. This component is commonly utilized in automotive and industrial automation sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 6MB (6M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | DMA, POR, PWM |
| Supplier Device Package | 516-PBGA (27x27) |
| Programmable | Not Verified |
