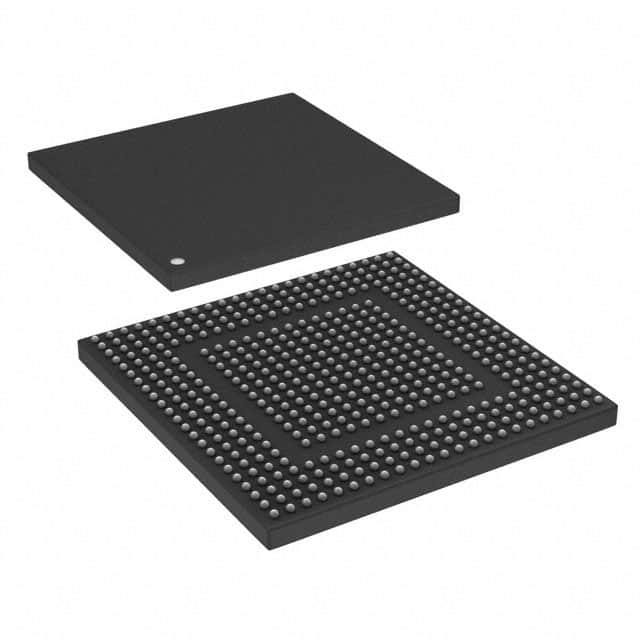

SPC5675KFF0VMS2R
IC MCU 32BIT 2MB FLASH 473MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5675KFF0VMS2R is a 32-bit dual-core microcontroller featuring the e200z7d core architecture. This device operates at 180MHz and offers 2MB of FLASH program memory (2M x 8) and 512KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, and SPI. The SPC5675KFF0VMS2R integrates a 34-channel 12-bit Analog-to-Digital converter and 64KB of EEPROM. Peripherals include DMA, POR, PWM, and WDT. This surface mount component is supplied in a 473-MAPBGA (19x19) package and operates within a temperature range of -40°C to 105°C (TA). It supports a supply voltage from 1.14V to 5.5V. This microcontroller is commonly utilized in automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 473-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z7d |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 473-MAPBGA (19x19) |
| Programmable | Not Verified |
