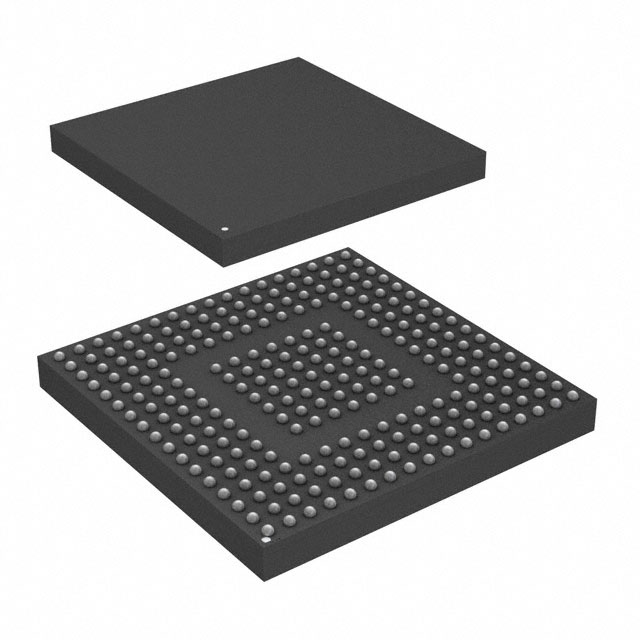

SPC5675KFF0VMM2
IC MCU 32BIT 2MB FLASH 257MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5675KFF0VMM2 is a 32-bit dual-core microcontroller featuring the e200z7d core processor, operating at 180MHz. This device offers 2MB of FLASH program memory and 512KB of RAM, along with 64KB of EEPROM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, and SPI. Integrated peripherals include DMA, POR, PWM, and WDT. It also incorporates 22 channels of 12-bit A/D conversion. The SPC5675KFF0VMM2 is supplied in a 257-LFBGA (14x14) package suitable for surface mounting. The operating temperature range is -40°C to 105°C (TA), and it operates from a supply voltage of 1.14V to 5.5V. This component is commonly utilized in automotive and industrial control applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 257-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z7d |
| Data Converters | A/D 22x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 257-LFBGA (14x14) |
| Programmable | Not Verified |
