SPC5675KFF0MMS2R
IC MCU 32BIT 2MB FLASH 473MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva microcontroller, part number SPC5675KFF0MMS2R. This 32-bit dual-core e200z7d processor operates at 180MHz, featuring 2MB of FLASH program memory and 512KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, and SPI. The device integrates 34x12b analog-to-digital converters and 64K x 8 EEPROM. Peripherals include DMA, POR, PWM, and WDT. It is supplied in a 473-MAPBGA (19x19) surface mount package with an extended operating temperature range of -40°C to 125°C. Applications span automotive and industrial control systems.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 473-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z7d |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, POR, PWM, WDT |

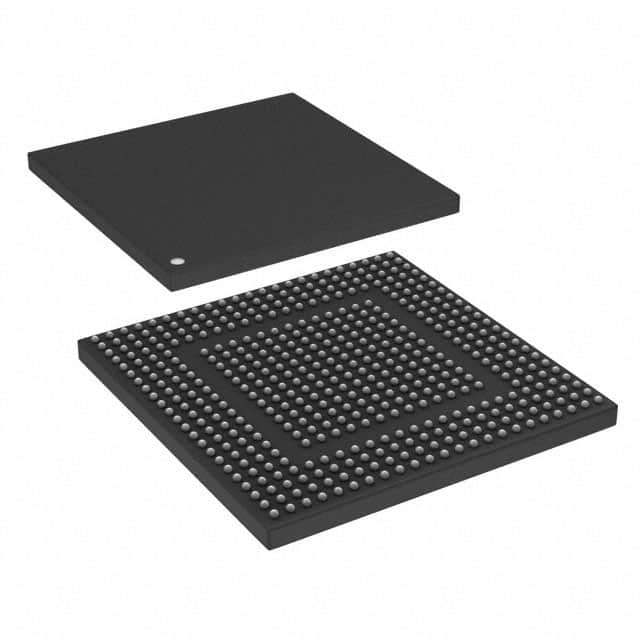

| Supplier Device Package | 473-MAPBGA (19x19) |
| Programmable | Not Verified |
