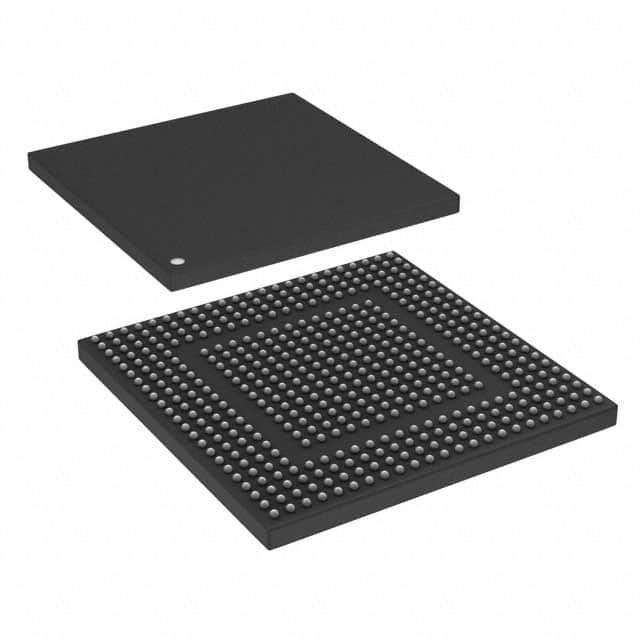

SPC5675KFAVMS2
IC MCU 32BIT 2MB FLASH 473MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva series SPC5675KFAVMS2 is a 32-bit dual-core microcontroller featuring the e200z7d core processor running at 180MHz. This device offers 2MB of FLASH program memory and 512KB of RAM, complemented by 64KB of EEPROM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, and SPI. On-chip peripherals include DMA, POR, PWM, and WDT. It also integrates 34 channels of 12-bit analog-to-digital converters. The SPC5675KFAVMS2 is housed in a 473-MAPBGA (19x19) package, suitable for surface mounting. The operating temperature range is -40°C to 105°C, with a supply voltage of 1.14V to 5.5V. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 473-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z7d |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 473-MAPBGA (19x19) |
| Programmable | Not Verified |
