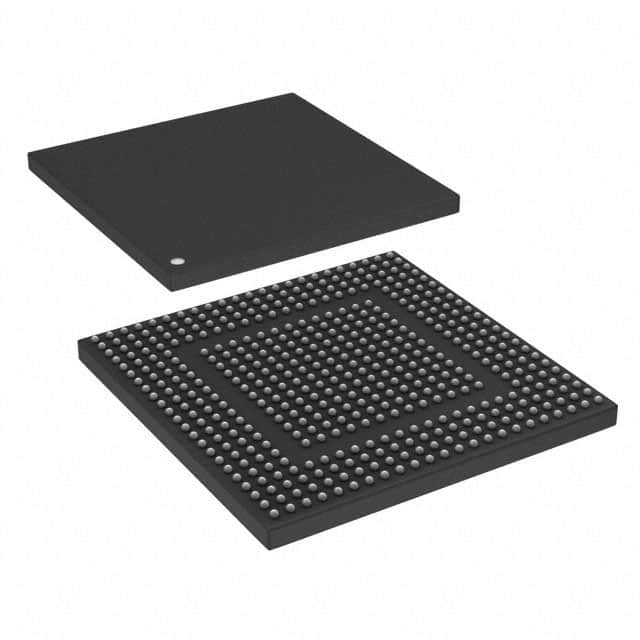

SPC5674KF0VMS2
IC MCU 32B 1.5MB FLASH 473MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. SPC5674KF0VMS2 is a 32-bit dual-core microcontroller from the MPC56xx Qorivva series, featuring the e200z7d core. This high-performance component operates at 180MHz and offers 1.5MB of FLASH program memory and 384KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, and SPI. It also incorporates a 64KB EEPROM, 34x12-bit Analog-to-Digital converters, and essential peripherals such as DMA, POR, PWM, and WDT. The SPC5674KF0VMS2 is supplied in a 473-MAPBGA (19x19) surface mount package, suitable for operation within an extended temperature range of -40°C to 105°C. This part finds application in automotive and industrial automation sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 473-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z7d |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 473-MAPBGA (19x19) |
| Programmable | Not Verified |
