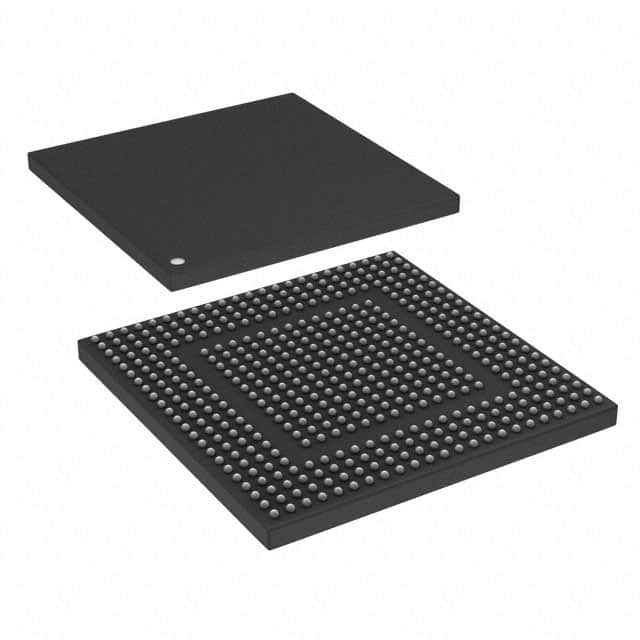

SPC5674KAVMS2R
IC MCU 32B 1.5MB FLASH 473MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5674KAVMS2R is a 32-bit dual-core microcontroller from the MPC56xx Qorivva series, featuring the e200z7d core processor. This device operates at 180MHz and offers 1.5MB of FLASH program memory and 384KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, and SPI. It is equipped with a 34x12-bit Analog-to-Digital converter and 64KB of EEPROM. Peripherals include DMA, POR, PWM, and WDT. The microcontroller is supplied in a 473-MAPBGA (19x19) package and is designed for surface mount applications. Operating temperature ranges from -40°C to 105°C. This component is widely utilized in automotive applications, including powertrain control, body electronics, and safety systems.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 473-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z7d |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 473-MAPBGA (19x19) |
| Programmable | Not Verified |
