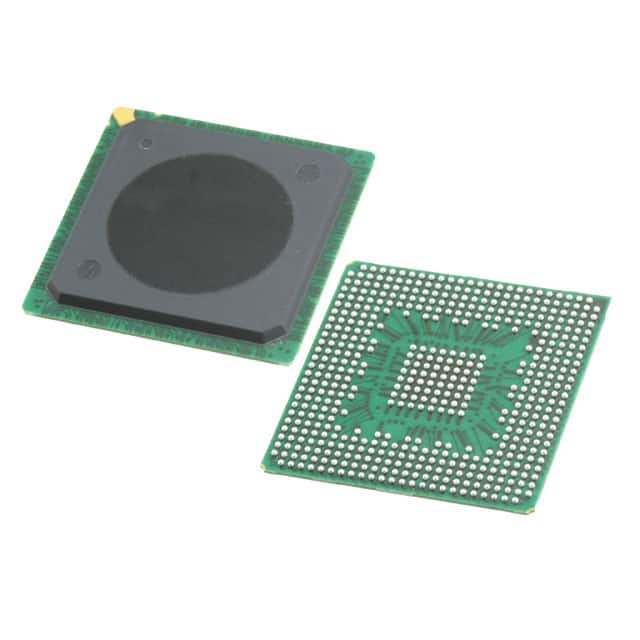

SPC5674FK0MVY3R
IC MCU 32BIT 4MB FLASH 516FPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5674FK0MVY3R is a 32-bit single-core microcontroller featuring the e200z7 core. This device operates at 264MHz and offers 4MB of FLASH program memory, organized as 4M x 8. It includes 256KB of RAM. Connectivity options include CANbus, EBI/EMI, SCI, and SPI. On-chip peripherals include DMA, POR, and PWM. The SPC5674FK0MVY3R is equipped with a 64-channel, 12-bit analog-to-digital converter. The component is supplied in a 516-PBGA (27x27) package for surface mounting and operates within a temperature range of -40°C to 125°C. The supply voltage range is 1.08V to 5.25V. This microcontroller is commonly utilized in automotive and industrial applications. It is provided in Tape & Reel packaging.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 264MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 64x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | DMA, POR, PWM |
| Supplier Device Package | 516-PBGA (27x27) |
| Number of I/O | 32 |
| Programmable | Not Verified |
