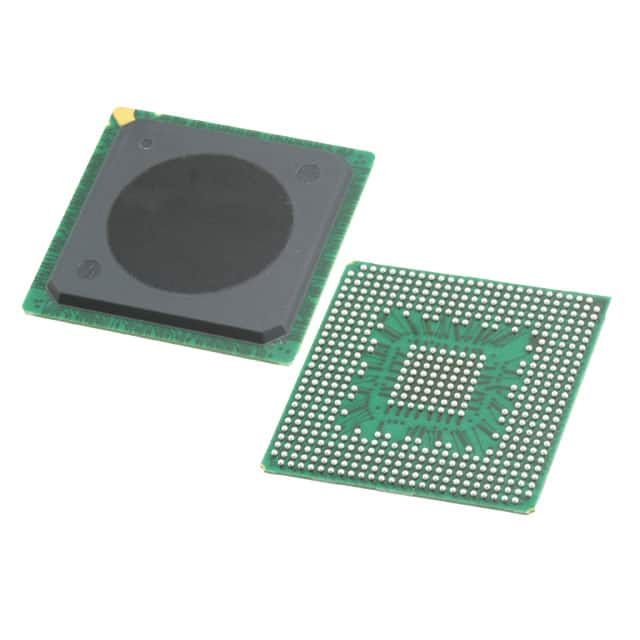

SPC5674FK0MVY3
IC MCU 32BIT 4MB FLASH 516FPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. SPC5674FK0MVY3 is a 32-bit single-core microcontroller from the MPC56xx Qorivva series. Featuring the e200z7 core, this device operates at 264MHz and offers 4MB of FLASH program memory with 256KB of RAM. Connectivity options include CANbus, EBI/EMI, SCI, and SPI interfaces. The component includes a 64x12-bit Analog-to-Digital converter and peripherals such as DMA, POR, and PWM. Housed in a 516-PBGA (27x27) surface-mount package, this RoHS compliant component is rated for operation between -40°C and 125°C. Its robust feature set makes it suitable for applications in the automotive and industrial sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 264MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 64x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | DMA, POR, PWM |
| Supplier Device Package | 516-PBGA (27x27) |
| Number of I/O | 32 |
| Programmable | Not Verified |
Request a Quote
