SPC5673KF0VMM1R
IC MCU 32BIT 1MB FLASH 257MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

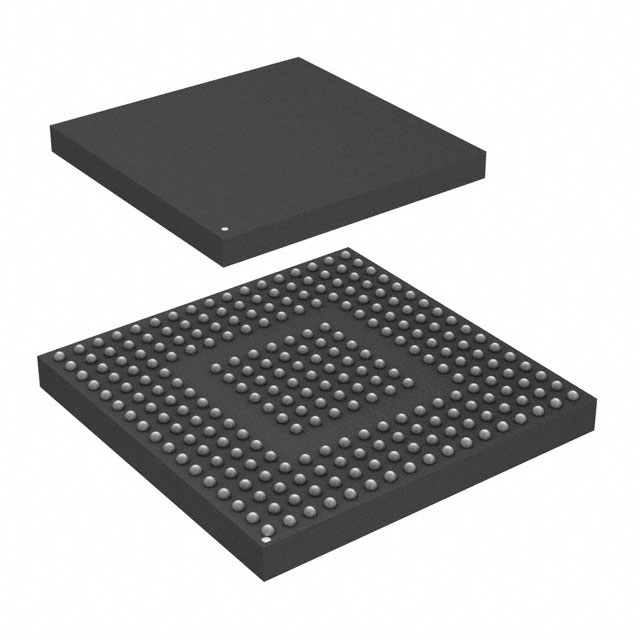

NXP USA Inc. MPC56xx Qorivva microcontroller, part number SPC5673KF0VMM1R, features a 32-bit dual-core e200z7d processor operating at 150MHz. This device offers 1MB of FLASH program memory and 256KB of RAM, with an additional 64KB of EEPROM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, and SPI. Integrated peripherals include DMA, POR, PWM, and WDT. The SPC5673KF0VMM1R is housed in a 257-LFBGA (14x14) package for surface mounting, operating within a temperature range of -40°C to 105°C. This component is suitable for demanding applications in the automotive and industrial sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 257-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z7d |
| Data Converters | A/D 22x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 257-LFBGA (14x14) |
| Programmable | Not Verified |
