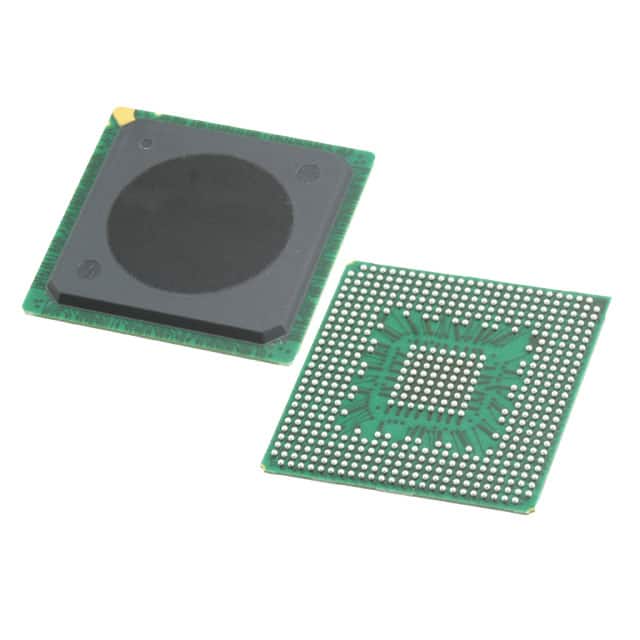

SPC5673FF3MVY2
IC MCU 32BIT 3MB FLASH 516FPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5673FF3MVY2 is a 32-Bit Single-Core microcontroller featuring the e200z7 core. This device operates at 200MHz and offers 3MB of FLASH program memory, complemented by 192KB of RAM. Connectivity options include CANbus, EBI/EMI, SCI, and SPI interfaces. Onboard peripherals include DMA, POR, and PWM. The SPC5673FF3MVY2 is equipped with 64x12b Analog-to-Digital converters. It is supplied in a 516-PBGA (27x27) package, designed for surface mounting, and operates within a temperature range of -40°C to 125°C. This component is suitable for automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 64x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | DMA, POR, PWM |
| Supplier Device Package | 516-PBGA (27x27) |
| Number of I/O | 32 |
| Programmable | Not Verified |
