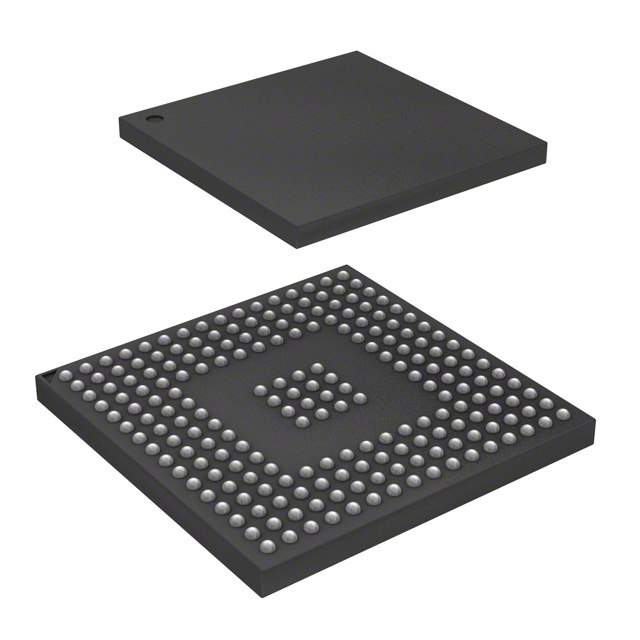

SPC5668GK0VMGR
IC MCU 32BIT 2MB FLASH 208MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva microcontroller featuring the e200z650 32-bit single-core processor operating at 116MHz. This component, part number SPC5668GK0VMGR, offers 2MB of FLASH program memory and 592KB of RAM. It includes 36x10-bit Analog-to-Digital converters, 155 I/O lines, and essential peripherals such as DMA, POR, PWM, and WDT. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. Supplied in a 208-MAPBGA (17x17) package for surface mounting, it operates within a temperature range of -40°C to 105°C. This device is suitable for automotive and industrial applications requiring robust control and communication capabilities.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-BGA |
| Mounting Type | Surface Mount |
| Speed | 116MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 592K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z650 |
| Data Converters | A/D 36x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-BGA (17x17) |
| Number of I/O | 155 |
| Programmable | Not Verified |
