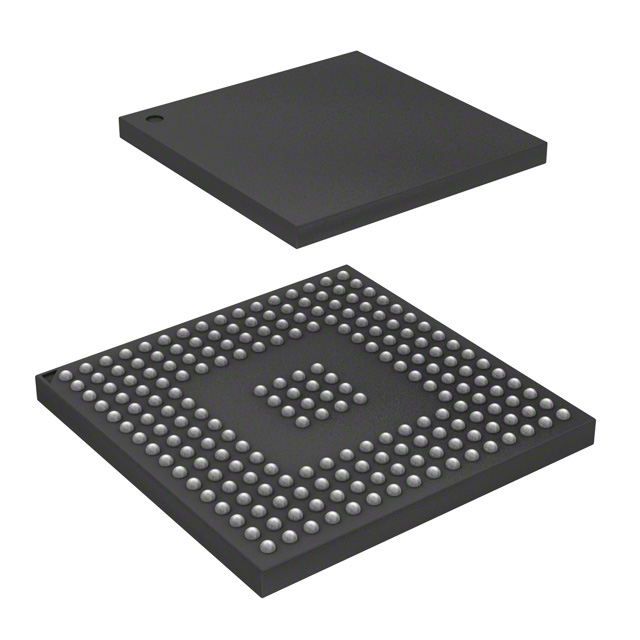

SPC5668GF1AMMGR
IC MCU 32BIT 2MB FLASH 208MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5668GF1AMMGR. This 32-bit microcontroller features a single-core e200z650 processor operating at 116MHz. It offers 2MB of FLASH program memory and 592KB of RAM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. The device includes 36 channels of 10-bit A/D conversion and 155 I/O pins. Peripherals include DMA, POR, PWM, and WDT. Supplied in a 208-BGA (17x17) package, this surface-mount component operates from 3V to 5.5V within an ambient temperature range of -40°C to 125°C. This component is utilized in automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-BGA |
| Mounting Type | Surface Mount |
| Speed | 116MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 592K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z650 |
| Data Converters | A/D 36x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-BGA (17x17) |
| Number of I/O | 155 |
| Programmable | Not Verified |
