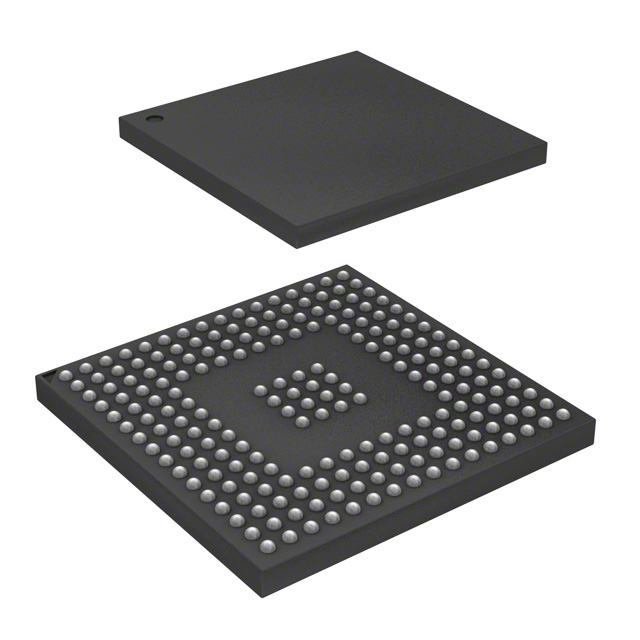

SPC5668GAVMGR
IC MCU 32BIT 2MB FLASH 208MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5668GAVMGR is a 32-bit single-core microcontroller featuring the e200z650 core operating at 116MHz. This component offers 2MB of FLASH program memory and 592KB of RAM, with 36 integrated 10-bit analog-to-digital converters. It supports multiple communication interfaces including CANbus, Ethernet, I2C, LINbus, SCI, and SPI. The SPC5668GAVMGR is housed in a 208-BGA (17x17) package suitable for surface mounting. Peripherals include DMA, POR, PWM, and WDT for enhanced functionality. This device is designed for applications in automotive and industrial sectors. It operates within a voltage range of 3V to 5.5V and an ambient temperature range of -40°C to 105°C. The component is supplied in Tape & Reel packaging.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-BGA |
| Mounting Type | Surface Mount |
| Speed | 116MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 592K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z650 |
| Data Converters | A/D 36x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-BGA (17x17) |
| Number of I/O | 155 |
| Programmable | Not Verified |
