SPC5646CK0MMJ1R

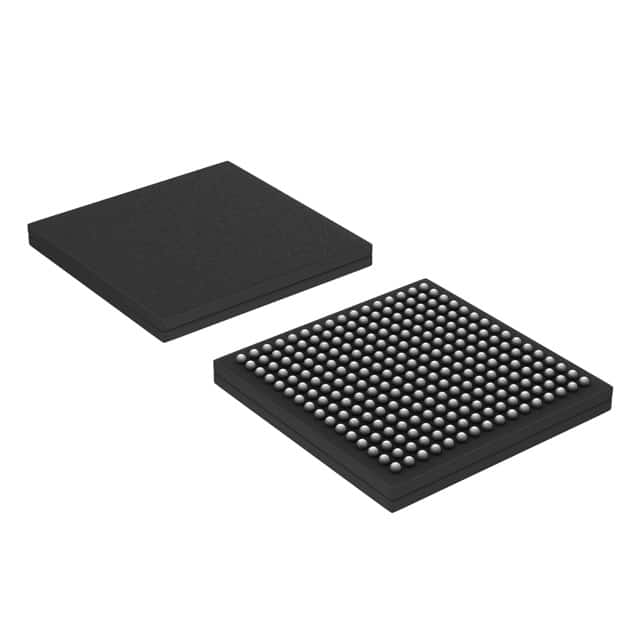

IC MCU 32BIT 3MB FLASH 256MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5646CK0MMJ1R is a 32-bit dual-core microcontroller from the MPC56xx Qorivva series. Featuring two e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively, this component offers 3MB of FLASH program memory and 256KB of RAM. It includes a 64KB EEPROM, 199 I/O lines, and a comprehensive set of peripherals including DMA, POR, PWM, and WDT. Connectivity options encompass CANbus, Ethernet, I2C, LINbus, SCI, and SPI. Data conversion capabilities include 33x10-bit and 10x12-bit ADCs. The SPC5646CK0MMJ1R is supplied in a 256-MAPBGA (17x17) surface mount package on tape and reel, with an operating temperature range of -40°C to 125°C. This microcontroller is suitable for demanding applications in the automotive and industrial sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 256-MAPBGA (17x17) |
| Number of I/O | 199 |
| Programmable | Not Verified |
