SPC5646CK0MMJ1

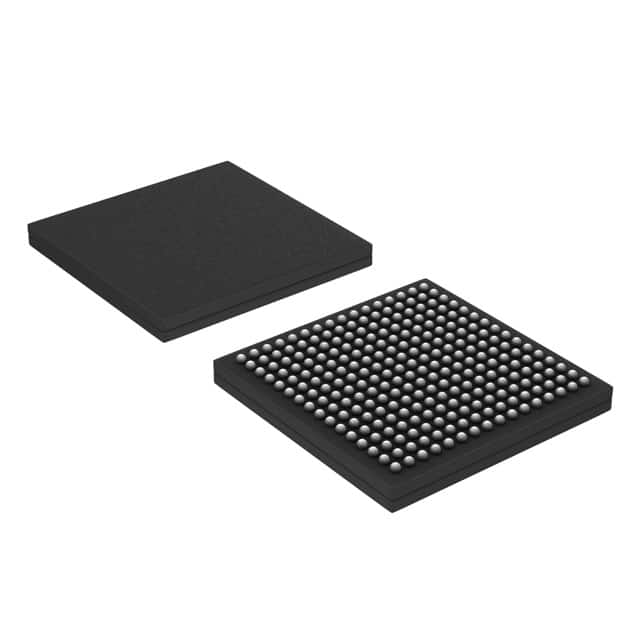

IC MCU 32BIT 3MB FLASH 256MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MPC56xx Qorivva SPC5646CK0MMJ1 is a 32-bit dual-core microcontroller featuring e200z4d and e200z0h cores, operating at 80MHz and 120MHz respectively. This device offers 3MB of FLASH program memory and 256KB of RAM, complemented by 64KB of EEPROM. It includes extensive connectivity options such as CANbus, Ethernet, I2C, LINbus, SCI, and SPI. On-chip peripherals include DMA, POR, PWM, and WDT. Data conversion capabilities are provided by 33x10-bit and 10x12-bit ADCs. The SPC5646CK0MMJ1 is housed in a 256-MAPBGA (17x17) surface mount package and operates within a voltage range of 3V to 5.5V, with an ambient temperature rating of -40°C to 125°C. This component finds application in automotive, industrial, and aerospace sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 256-MAPBGA (17x17) |
| Number of I/O | 199 |
| Programmable | Not Verified |
