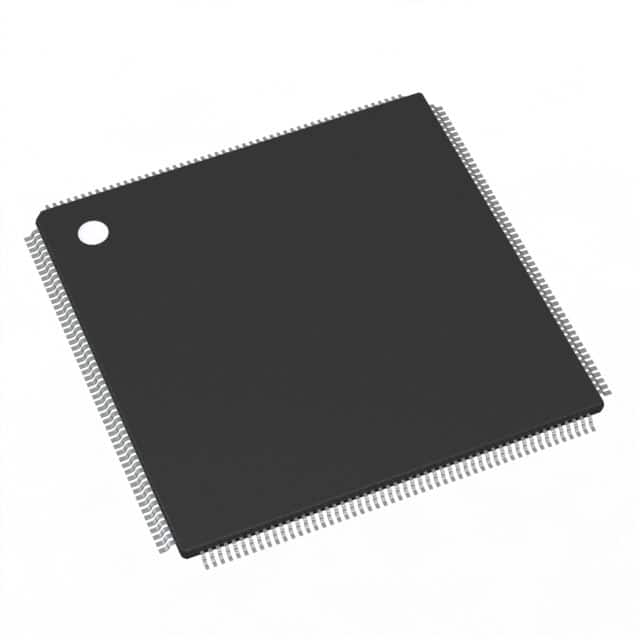

SPC5646CF0VLT1R
IC MCU 32BIT 3MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5646CF0VLT1R is a 32-bit dual-core microcontroller featuring e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively. This device offers 3MB of FLASH program memory and 256KB of RAM, complemented by 64KB of EEPROM. It supports a wide array of communication protocols including CANbus, Ethernet, I2C, LINbus, SCI, and SPI. Integrated data conversion capabilities include 33x10-bit and 10x12-bit ADCs. Peripherals include DMA, POR, PWM, and WDT. Designed for surface mount applications, it is supplied in a 208-TQFP (28x28) package on a tape and reel. This component operates within a temperature range of -40°C to 105°C (TA) and requires a supply voltage from 3V to 5.5V. The SPC5646CF0VLT1R finds application in automotive and industrial automation sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
