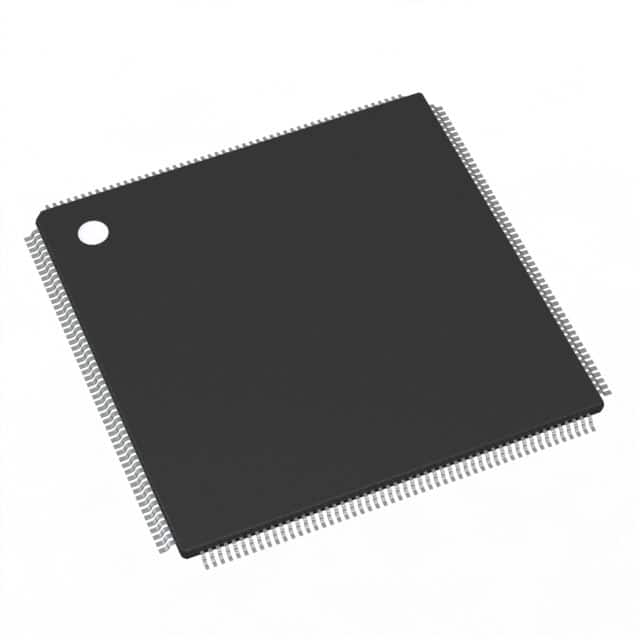

SPC5646CF0VLT1
IC MCU 32BIT 3MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5646CF0VLT1 is a 32-bit dual-core microcontroller from the MPC56xx Qorivva series, featuring e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively. This device offers 3MB of FLASH program memory and 256KB of RAM, along with 64KB of EEPROM. It includes a comprehensive peripheral set, such as DMA, POR, PWM, and WDT, and supports various communication interfaces including CANbus, Ethernet, I2C, LINbus, SCI, and SPI. The SPC5646CF0VLT1 is equipped with 33x10-bit and 10x12-bit analog-to-digital converters, and 177 I/O lines. Supplied in a 208-TQFP (28x28) surface mount package, it operates within a temperature range of -40°C to 105°C (TA) and is suitable for automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
