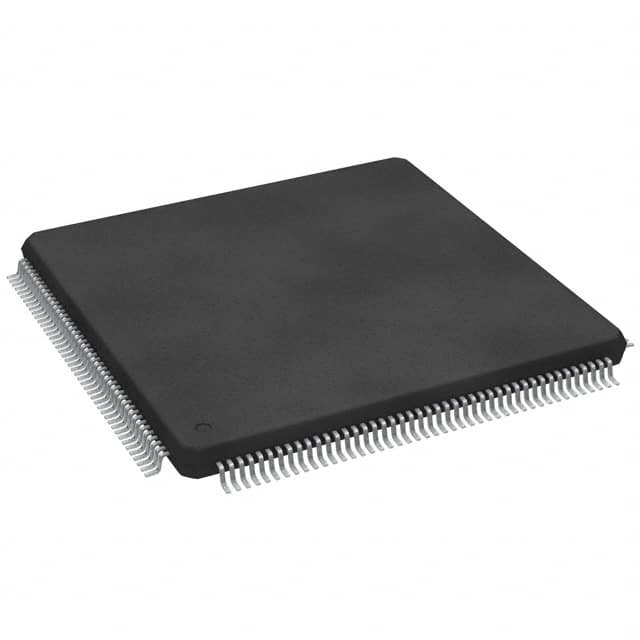

SPC5646CCK0MLU1R
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5646CCK0MLU1R is a 32-Bit Dual-Core microcontroller from the MPC56xx Qorivva series. Featuring e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively, this device offers 3MB of FLASH program memory and 256KB of RAM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. Data conversion is supported by 27x10-bit and 5x12-bit ADCs. Integrated peripherals include DMA, POR, PWM, and WDT. The device also contains 64KB of EEPROM. It is supplied in a 176-LQFP (24x24) surface mount package and operates from 3V to 5.5V over an ambient temperature range of -40°C to 125°C. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 27x10b, 5x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 147 |
| Programmable | Not Verified |
