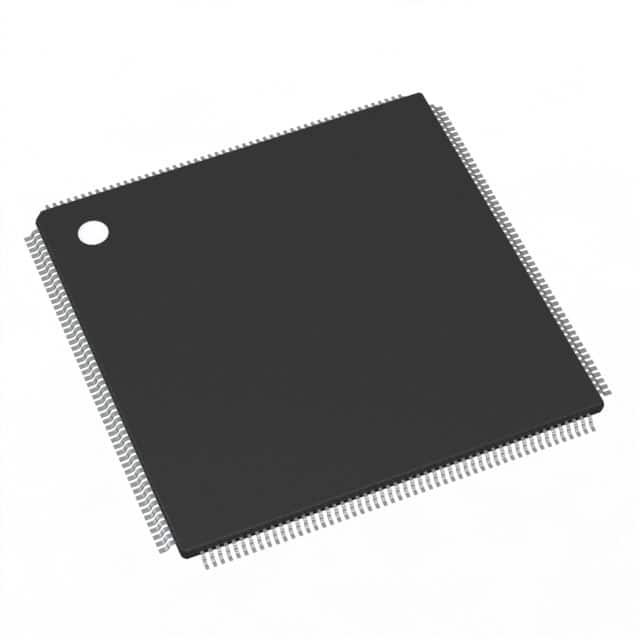

SPC5646CCK0MLT1
IC MCU 32BIT 3MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5646CCK0MLT1 is a 32-bit dual-core microcontroller from the MPC56xx Qorivva series. Featuring e200z4d and e200z0h cores, it operates at selectable speeds of 80MHz and 120MHz. This device offers 3MB of FLASH program memory and 256KB of RAM, along with 64KB of EEPROM for data storage. It supports a wide range of connectivity options including CANbus, Ethernet, I2C, LINbus, SCI, and SPI. Integrated peripherals include DMA, POR, PWM, and WDT. The SPC5646CCK0MLT1 is equipped with multiple data converters, with 33 channels of 10-bit and 10 channels of 12-bit Analog-to-Digital conversion. It provides 177 I/O lines and is housed in a 208-TQFP (28x28) surface mount package. This component operates within a voltage range of 3V to 5.5V and an ambient temperature range of -40°C to 125°C. Its robust feature set makes it suitable for applications in automotive, industrial automation, and advanced control systems.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
