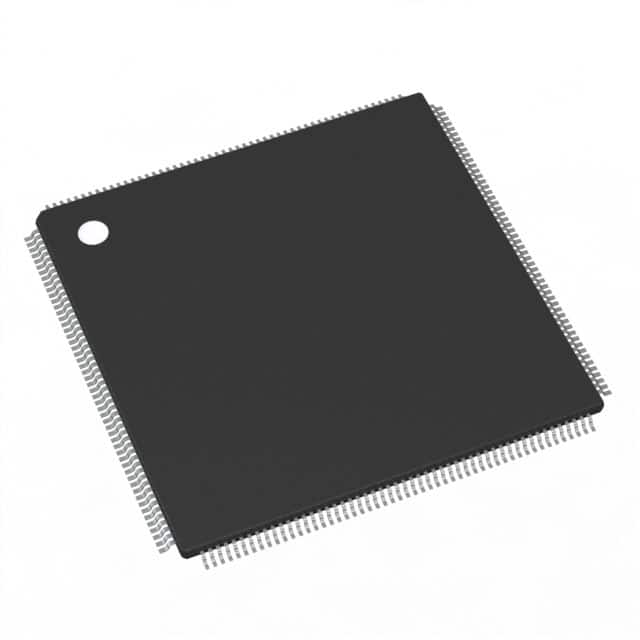

SPC5646CCF0VLT1R
IC MCU 32BIT 3MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5646CCF0VLT1R is a 32-bit dual-core microcontroller featuring e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively. This device offers 3MB of FLASH program memory and 256KB of RAM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. It is equipped with a 33x10-bit and 10x12-bit Analog-to-Digital converter, 64KB of EEPROM, and 177 I/O pins. Peripherals include DMA, POR, PWM, and WDT. The SPC5646CCF0VLT1R is housed in a 208-TQFP (28x28) surface mount package and operates within a temperature range of -40°C to 105°C. This component is widely utilized in automotive and industrial applications. The device is supplied on tape and reel.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
Request a Quote
