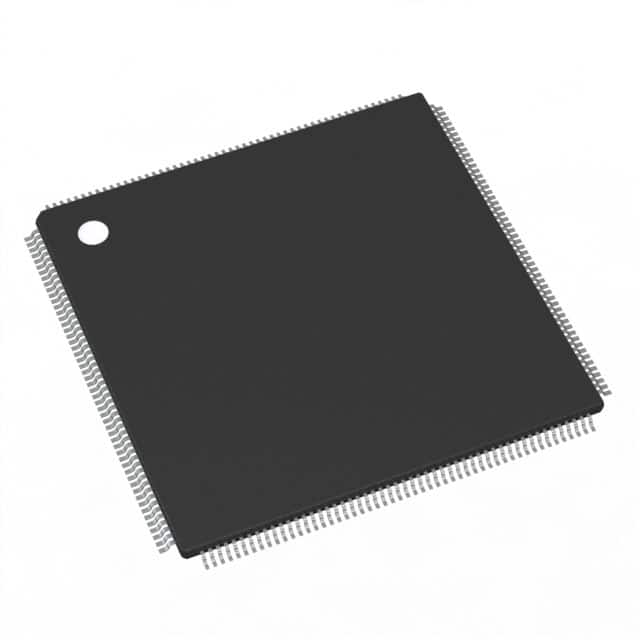

SPC5646CCF0VLT1
IC MCU 32BIT 3MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva Microcontroller SPC5646CCF0VLT1 is a 32-bit dual-core microcontroller featuring e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively. This device offers 3MB of FLASH program memory and 256KB of RAM, supported by 64KB of EEPROM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. The SPC5646CCF0VLT1 integrates peripherals such as DMA, POR, PWM, and WDT, alongside data converters including 33x10-bit and 10x12-bit ADCs. With 177 I/O lines and an internal oscillator, this microcontroller is housed in a 208-TQFP (28x28) package suitable for surface mounting. It operates within a temperature range of -40°C to 105°C and requires a supply voltage from 3V to 5.5V. This component is widely utilized in automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
