SPC5646BK0MLU1

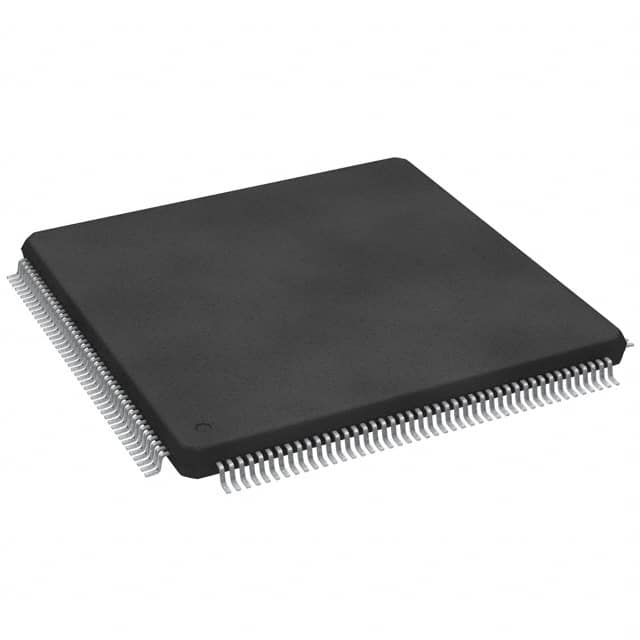

IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MPC56xx Qorivva SPC5646BK0MLU1 is a 32-bit single-core microcontroller featuring the e200z4d processor core. This component offers 3MB of FLASH program memory and 192KB of RAM, supported by 64KB of EEPROM. Operating at 120MHz, it includes a comprehensive set of peripherals such as DMA, POR, PWM, and WDT. Connectivity options include CANbus, I2C, LINbus, SCI, and SPI interfaces. The device integrates 27x10-bit and 5x12-bit Analog-to-Digital converters and provides 147 I/O lines. Packaged in a 176-LQFP (24x24) for surface mounting, it operates within a temperature range of -40°C to 125°C (TA) and supports supply voltages from 3V to 5.5V. This microcontroller is suitable for automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 27x10b, 5x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 147 |
| Programmable | Not Verified |
