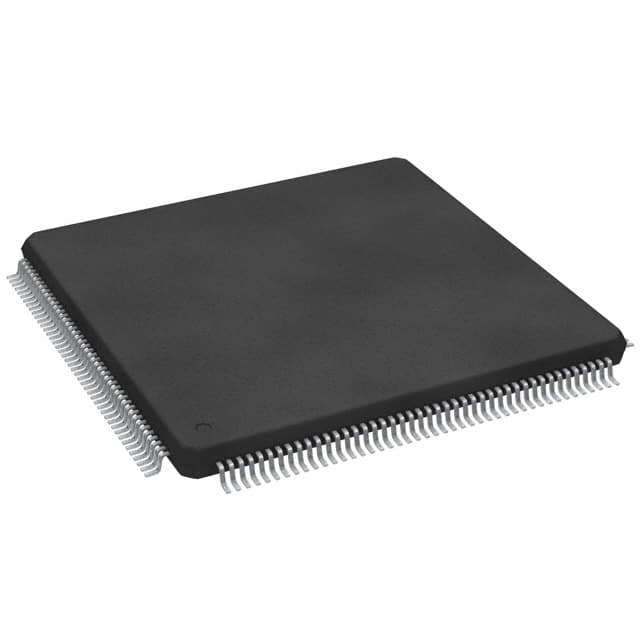

SPC5646BF0VLU1
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5646BF0VLU1 is a 32-bit Qorivva microcontroller featuring a single-core e200z4d processor operating at 120MHz. This component offers 3MB of FLASH program memory and 192KB of RAM. It includes a 64KB EEPROM for non-volatile data storage. Key peripherals include multiple CANbus interfaces, I2C, LINbus, SCI, and SPI, along with DMA, POR, PWM, and WDT. The device supports analog-to-digital conversion with 27 channels of 10-bit and 5 channels of 12-bit resolution. With 147 I/O pins and a 176-LQFP (24x24) surface mount package, it is suitable for demanding automotive and industrial applications. The operating temperature range is -40°C to 105°C.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 27x10b, 5x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 147 |
| Programmable | Not Verified |
