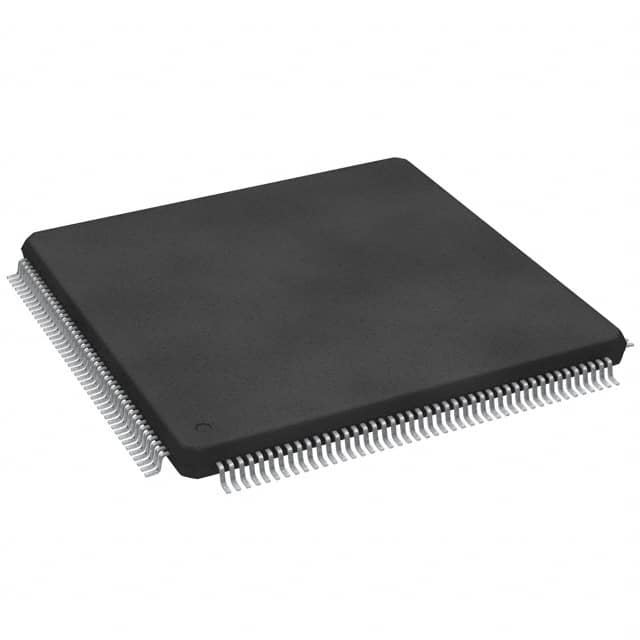

SPC5646BF0MLU1R
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MPC56xx Qorivva series SPC5646BF0MLU1R is a 32-bit single-core microcontroller featuring the e200z4d core. This device operates at 120MHz and offers 3MB of FLASH program memory alongside 192KB of RAM. Connectivity options include CANbus, I2C, LINbus, SCI, and SPI. It is equipped with a comprehensive set of peripherals such as DMA, POR, PWM, and WDT, and includes advanced data conversion capabilities with 27x10-bit and 5x12-bit ADCs. The SPC5646BF0MLU1R has 147 I/O lines and 64KB of EEPROM. Packaged in a 176-LQFP (24x24) surface mount configuration, it operates across a temperature range of -40°C to 125°C and supports supply voltages from 3V to 5.5V. This component is widely employed in automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 27x10b, 5x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 147 |
| Programmable | Not Verified |
