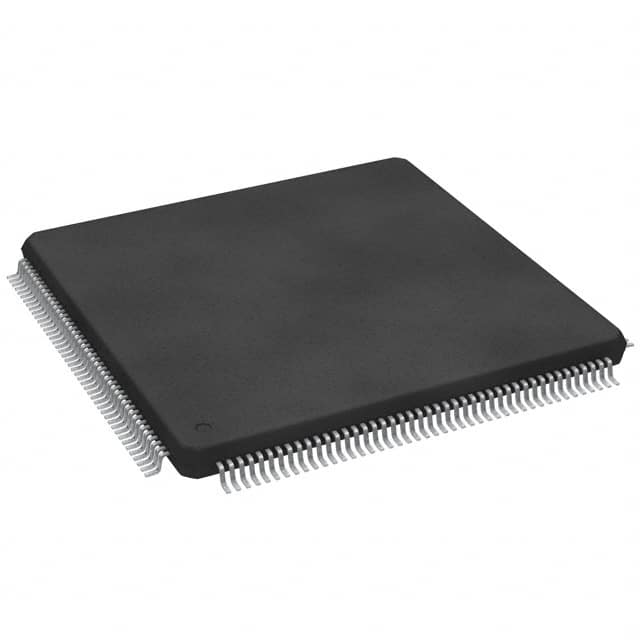

SPC5646BCF0VLU8R
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. SPC5646BCF0VLU8R is a 32-bit single-core microcontroller from the MPC56xx Qorivva series. This device features an e200z4d core operating at 120MHz, with 3MB of FLASH program memory and 192KB of RAM. On-chip peripherals include DMA, POR, PWM, and WDT. Connectivity options are extensive, supporting CANbus, I2C, LINbus, SCI, and SPI interfaces. The SPC5646BCF0VLU8R also includes data conversion capabilities with 27x10-bit and 5x12-bit ADCs, alongside 64KB of EEPROM. Housed in a 176-LQFP (24x24) package, this surface-mount component operates within a temperature range of -40°C to 105°C and is supplied on tape and reel. Its robust feature set makes it suitable for demanding automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 27x10b, 5x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 147 |
| Programmable | Not Verified |
