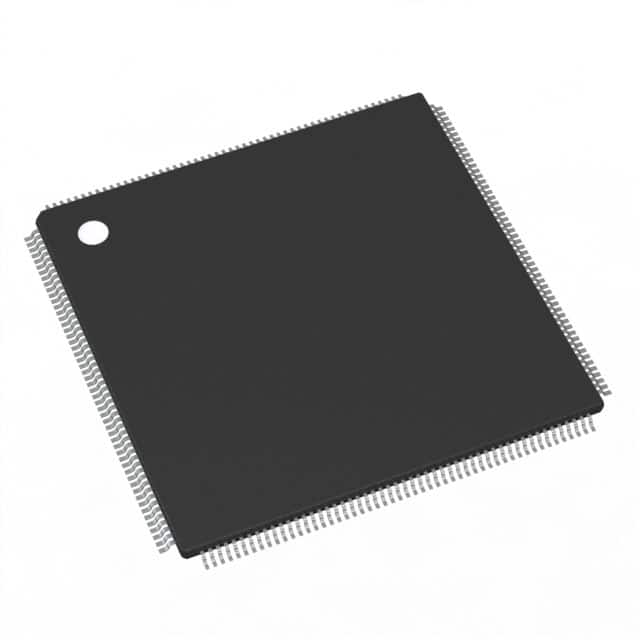

SPC5645CF0VLT1R
IC MCU 32BIT 2MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5645CF0VLT1R is a 32-bit dual-core Qorivva microcontroller featuring e200z4d and e200z0h processors operating at 80MHz and 120MHz respectively. This device provides 2MB of FLASH program memory and 256KB of RAM, along with 64KB of EEPROM. It offers extensive connectivity options including CANbus, Ethernet, I2C, LINbus, SCI, and SPI. The SPC5645CF0VLT1R is equipped with 33x10-bit and 10x12-bit Analog-to-Digital converters, and peripherals such as DMA, POR, PWM, and WDT. Housed in a 208-TQFP (28x28) surface mount package, it operates within a temperature range of -40°C to 105°C. This component is designed for applications in automotive and industrial sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
