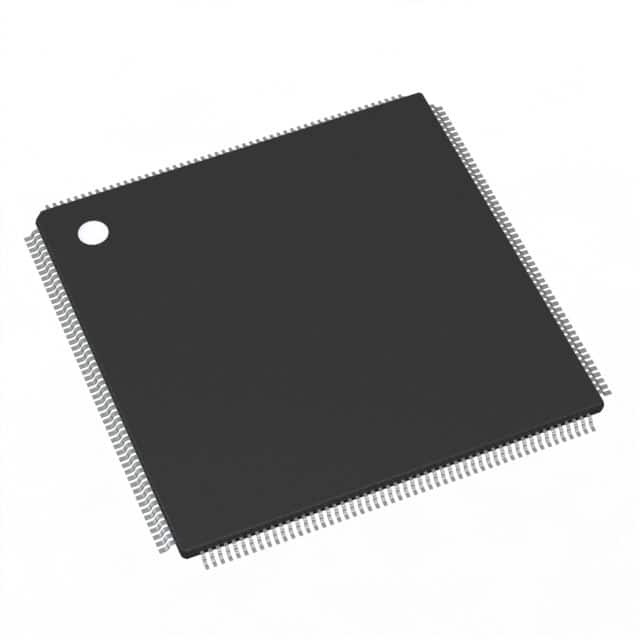

SPC5645CF0VLT1
IC MCU 32BIT 2MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5645CF0VLT1 is a 32-bit dual-core microcontroller from the MPC56xx Qorivva series, featuring e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively. This device offers 2MB of FLASH program memory and 256KB of RAM, with an additional 64KB EEPROM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. It incorporates 33x10-bit and 10x12-bit Analog-to-Digital converters, along with peripherals such as DMA, POR, PWM, and WDT. Mounted via surface mount technology, the microcontroller is packaged in a 208-TQFP (28x28) tray. The operating temperature range is -40°C to 105°C (TA), and it requires a supply voltage between 3V and 5.5V. This component is widely utilized in automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
