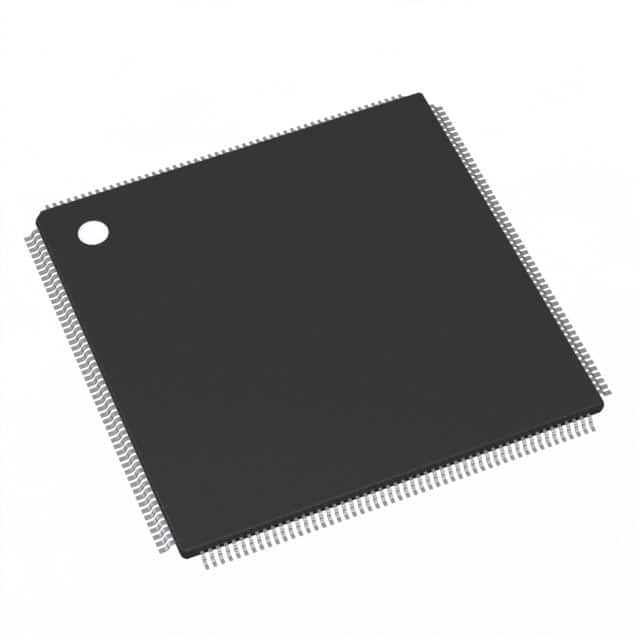

SPC5645CF0MLT1
IC MCU 32BIT 2MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5645CF0MLT1 is a 32-bit dual-core microcontroller from the MPC56xx Qorivva series, featuring e200z4d and e200z0h cores operating at up to 80MHz and 120MHz respectively. This device offers 2MB of FLASH program memory and 256KB of RAM, complemented by 64KB of EEPROM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. The SPC5645CF0MLT1 is equipped with multiple data converters, including 33x10-bit and 10x12-bit ADCs. Peripherals such as DMA, POR, PWM, and WDT are integrated for enhanced functionality. Designed for surface mounting, this microcontroller is housed in a 208-TQFP (28x28) package. It operates within a temperature range of -40°C to 125°C (TA) and a supply voltage of 3V to 5.5V. This component is widely utilized in automotive applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
