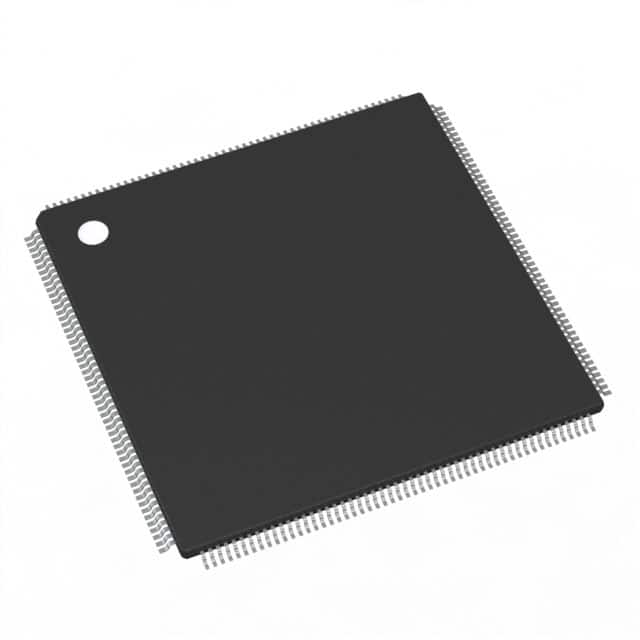

SPC5645BK0VLT1R
IC MCU 32BIT 2MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5645BK0VLT1R is a 32-bit single-core microcontroller featuring the e200z4d core operating at 120MHz. This component offers 2MB of FLASH program memory and 160KB of RAM, alongside 64KB of EEPROM. Connectivity options include CANbus, I2C, LINbus, SCI, and SPI interfaces. The device is equipped with A/D converters supporting 33 channels of 10-bit resolution and 10 channels of 12-bit resolution. Peripherals include DMA, POR, PWM, and WDT. With 177 I/O lines and an operating temperature range of -40°C to 105°C, the SPC5645BK0VLT1R is presented in a 208-TQFP (28x28) surface-mount package, supplied on tape and reel. This microcontroller is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 160K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
Request a Quote
