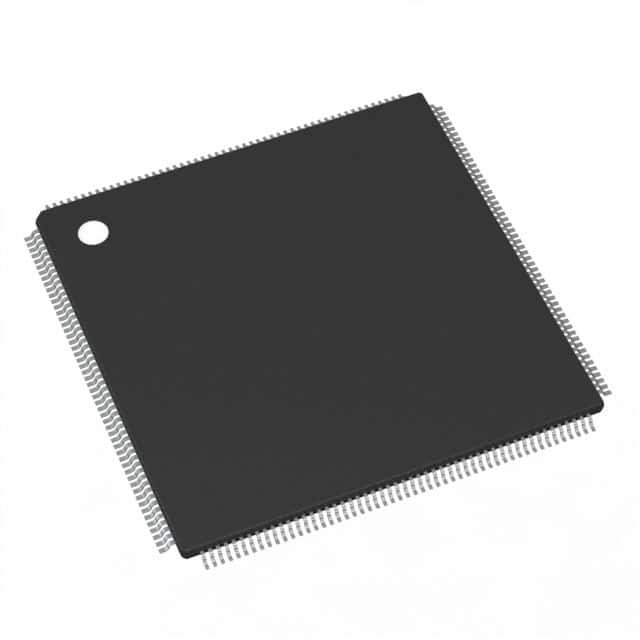

SPC5645BF0VLT1
IC MCU 32BIT 2MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5645BF0VLT1 is a 32-bit single-core MPC56xx Qorivva microcontroller featuring the e200z4d core operating at 120MHz. This device offers 2MB of FLASH program memory and 160KB of RAM, suitable for demanding embedded applications. Peripheral support includes multiple CANbus interfaces, I2C, LINbus, SCI, and SPI for robust connectivity. It integrates 33x10-bit and 10x12-bit Analog-to-Digital converters for signal acquisition. Additional features comprise DMA, POR, PWM, and WDT for system control and management. The SPC5645BF0VLT1 is housed in a 208-TQFP (28x28) package for surface mounting and operates across a temperature range of -40°C to 105°C. This component is commonly utilized in automotive and industrial automation sectors.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 160K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
