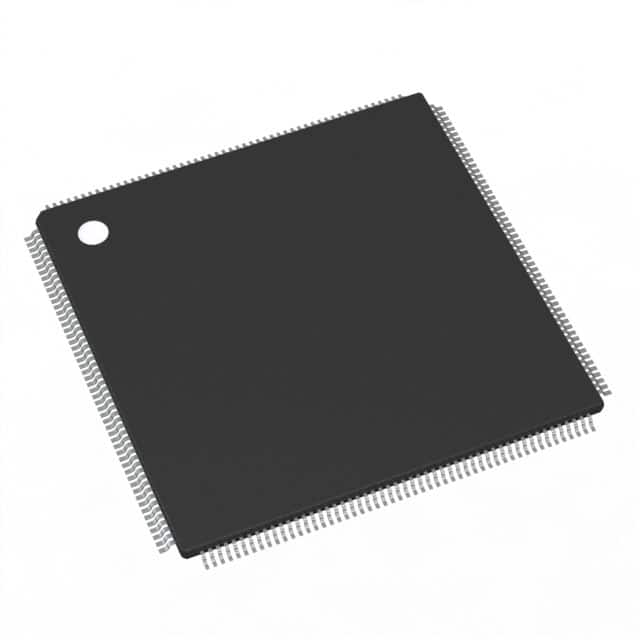

SPC5645BAVLT1R
IC MCU 32BIT 2MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5645BAVLT1R is a 32-bit single-core microcontroller featuring the e200z4d core, operating at 120MHz. This component offers 2MB of FLASH program memory and 160KB of RAM. Connectivity options include CANbus, I2C, LINbus, SCI, and SPI. The device integrates analog-to-digital converters with 33 channels of 10-bit and 10 channels of 12-bit resolution. Peripherals include DMA, POR, PWM, and WDT. The SPC5645BAVLT1R is supplied in a 208-TQFP (28x28) surface mount package and operates within a voltage range of 3V to 5.5V. It is designed for applications in the automotive and industrial sectors. This component is available on tape and reel.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 160K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
