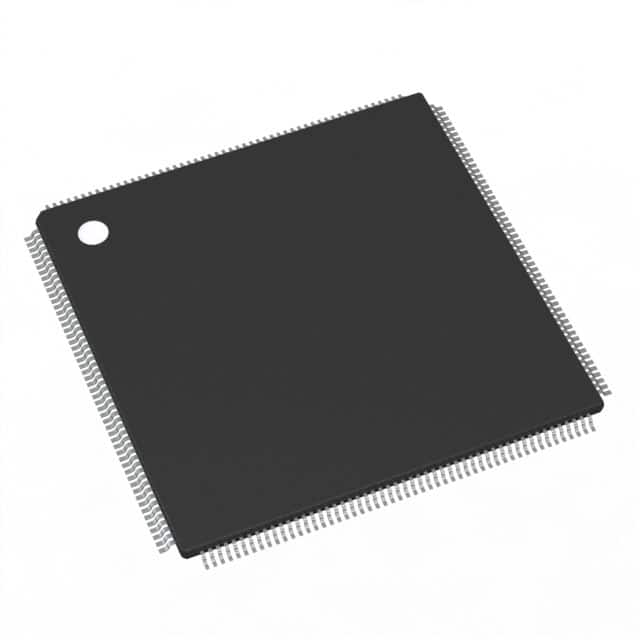

SPC5645BAVLT1
IC MCU 32BIT 2MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5645BAVLT1 is a 32-bit single-core microcontroller featuring the e200z4d core, operating at 120MHz. This device offers 2MB of FLASH program memory and 160KB of RAM, complemented by 64KB of EEPROM. Connectivity options include CANbus, I2C, LINbus, SCI, and SPI. For analog interfacing, it provides 33 channels of 10-bit A/D conversion and 10 channels of 12-bit A/D conversion. Peripherals include DMA, POR, PWM, and WDT. This MCU is housed in a 208-TQFP (28x28) surface mount package and operates within a temperature range of -40°C to 105°C. Its extensive feature set makes it suitable for automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 160K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
