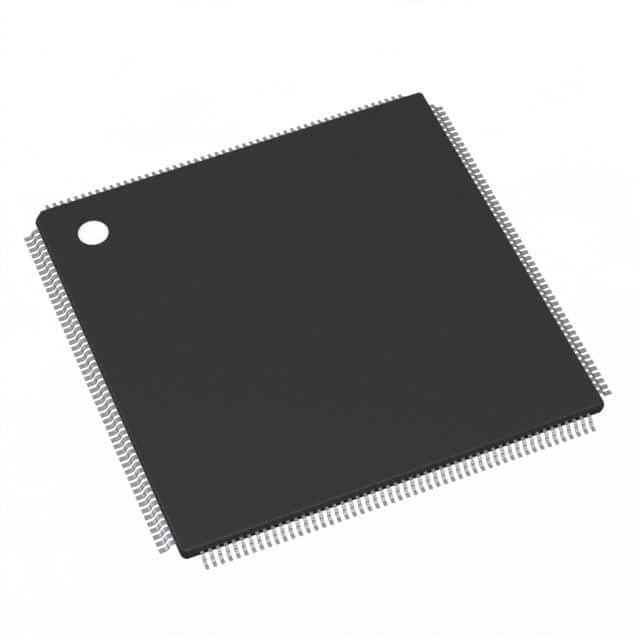

SPC5644CF0VLT1
IC MCU 32BIT 1.5MB FLASH 208TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5644CF0VLT1 is a 32-bit dual-core microcontroller featuring e200z4d and e200z0h cores operating at 80MHz and 120MHz respectively. This component offers 1.5MB of FLASH program memory and 192KB of RAM. Connectivity options include CANbus, Ethernet, I2C, LINbus, SCI, and SPI. Data conversion capabilities are provided by 33x10-bit and 10x12-bit ADCs. Peripherals include DMA, POR, PWM, and WDT. The SPC5644CF0VLT1 is housed in a 208-TQFP (28x28) surface mount package and operates within a temperature range of -40°C to 105°C. This microcontroller is suitable for automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz/120MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | e200z4d, e200z0h |
| Data Converters | A/D 33x10b, 10x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-TQFP (28x28) |
| Number of I/O | 177 |
| Programmable | Not Verified |
